Garmin Tread Audio System with LED Controller

The Tread audio system delivers premium quality audio that you can take on any adventure and is designed for any off-road powersport vehicle.

• Options for audio sources include AM/FM, AUX and BLUETOOTH® technology.
• The built-in speaker LEDs let you control and even sync colors to your music.
• Enjoy the flexible setup designed for any side-by-side or other off-road vehicle.
• Pairs with the Tread® app on your compatible smartphone or Tread® device to display music and settings.
• The rugged design helps withstand bumpy rides and weather conditions, so your music never skips a beat.
• A wireless remote is included for convenient control.

Features

RUGGED DESIGN
The IP67 design is built to withstand dust, water and weather conditions, so your music will keep playing through rough terrain.

FULL AUDIO SYSTEM
Get everything you need for music: two 6.5” XS-LED tower speakers, the Tread audio box with LED controller and a wireless remote.

MULTIPLE AUDIO SOURCES
Enjoy quality audio from multiple sources, including AM/FM radio, AUX and even BLUETOOTH.

CUSTOM LED SPEAKERS
Choose from thousands of colors for your speakers. You can even sync your speakers to pulse to your music. When paired with your Tread navigator (sold separately), you can sync to your vehicle speed, or match your vehicle’s marker on the map for group rides.

WIRELESS REMOTE
Control your music with the included wireless remote that controls volume, track and audio source.

PAIR WITH TREAD APP
Pair with the Tread app on your compatible smartphone for full control, and see a display showing music settings.

PAIR WITH TREAD DEVICE
Pair with any rugged Tread all-terrain navigation (sold separately) device to control audio, show music settings and more.

FLEXIBLE SETUP
A universal design is built for any side-by-side or off-road powersport vehicle.

Specifications

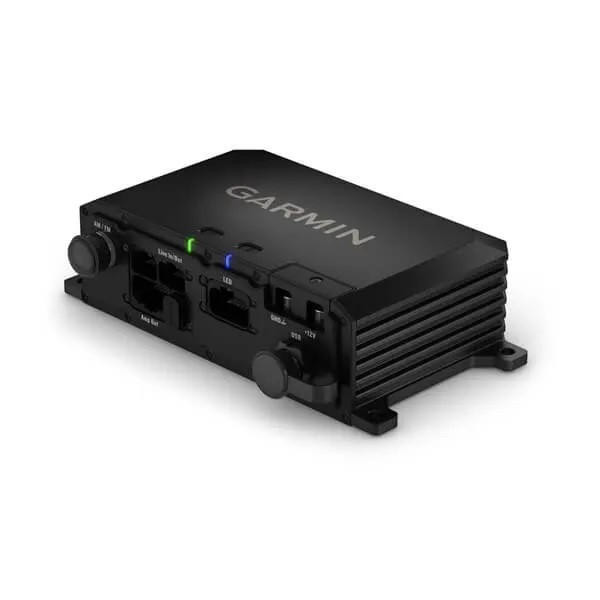

Audio Box

• Weight 997 g (2.2 lbs)
• Physical Dimensions (LxWxH) 210 mm x 130 mm x 55 mm (8.27" x 5.12" x 2.165")
• Water and dust rating IP67
• Input voltage 8 to 14.4 Vdc
• Current (max) 40 A
• Current (muted) less than 650 mA
• Operating temperature range -4° F to 158° F (-20° to 70° C)
• Storage temperature range -40° F to 185° F (-40° to 85° C)
• Compass safe distance 203 mm (8")
• BLUETOOTH wireless range up to 10 m (30 ft)
• ANT wireless range up to 10 m (30 ft)
• Fuse 15 A mini-blade type
• Peak power (Watts) Four 200 W per channel
• RMS power (Watts) Four 100 W RMS at 14.4 Vdc input, 4 ohm
• Warranty 1 year

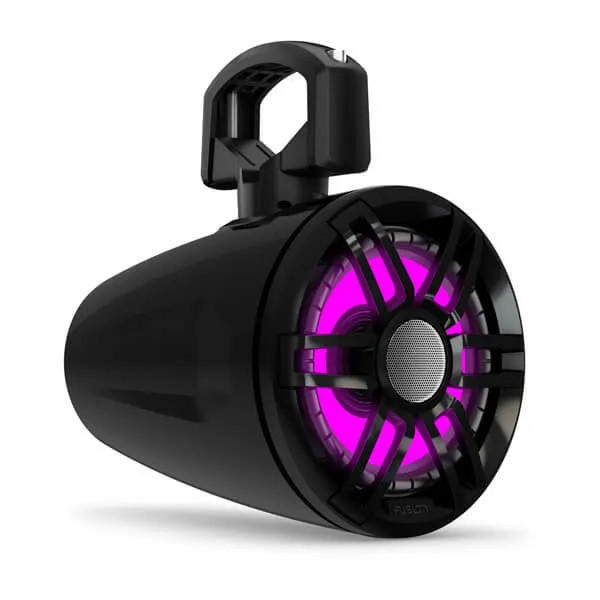

Speakers

• Weight 2.49 kg (5.5 lbs)
• Physical Dimensions 177 mm x 233 mm (6.97" x 8.78")
• Water and dust rating IP67
• Operating temperature range 32° - 122° F (0° to 50° C)
• Speaker size 6.5"
• Peak power (Watts) 200 W per speaker
• RMS power (Watts) 50 W
• Sensitivity (1 W/1 m) 91 db
• Frequency response 80 Hz - 18kHz
• Nominal impedance 4 ohms
• Recommended amplifier power (RMS) 20 - 150 W
• LED lighting yes (RGB)
• LED supply voltage 10.8 - 16 Vdc
• LED load current @ 14.4 VDC 150 mA
• Voice coil diameter 30 mm (1.18")
• Cone material polypropylene (PP) cone with cloth surround
• Tweeter type aluminum dome
• Supported roll bar sizes 33.4 mm (1.31") to 50.8 mm (2.00") outer diameter
• Warranty 1 year
• Wiring 3 m

Includes

Audio System

Audio System with LED Controller

• Tread Audio Box with LED controller
• Two 6.5” XS-LED tower speakers with tube mounts
• Wireless remote
• Wiring
• Documentation

Audio Box only

Audio Box with LED Controller

• Tread Audio Box with LED controller
• Wireless remote
• Wiring harnesses
• Documentation

Speakers only

6.5” XS-LED Tower Speakers

• Two 6.5” XS-LED tower speakers with tube mounts
• Documentation

Audio System plus 2 Speakers

Audio System with Two Additional Speakers

• Tread Audio Box with LED controller
• Four 6.5" XS-LED tower speakers with tube mounts
• Wireless remote
• Wiring
• Documentation

Audio System plus Subwoofer

Audio System with Subwoofer

• Tread Audio Box with LED controller
• Two 6.5" XS-LED tower speakers with tube mounts
• Fusion® XS series 10” 600-Watt subwoofer with RGB LED lighting (no enclosure)
• Wireless remote
• Wiring (tower speakers only)
• Documentation
